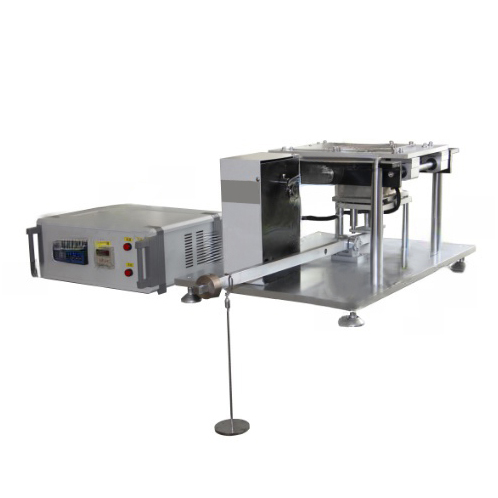

Sandpaper abrasion tester

Application

The machine is mainly used for the testing of anode metal alumina, electroplated metal, metal coating, plastic products, rubber and other materials. The grinding range of each reciprocating motion is 0.9 degrees, which can keep the sample rubbed to a fresh surface(400 rotations are required for a complete 360-degree rotation). The friction ring rubs the bottom surface of the sample so that dust does not fall on the surface of the sample, To prevent slipping caused by repeated friction.

Various styles of sandpaper can be used and can be matched with various equipment holders. In addition to flat samples, samples of other shapes can also be tested on this testing machine. Tests can be flexibly designed

Technical Parameters

1. Reciprocating motion: about 40 ± 0.5 /min.

2. Loading force: 0.98-29.42N (adjustable), Error about 0.15N at 29.42N

3. Sample size: Φ14 * Φ75 * 5mm
